ABB VEM4 Mechanical And Electrical Interlock Unit 1SBN030111R1000
Product Description
-

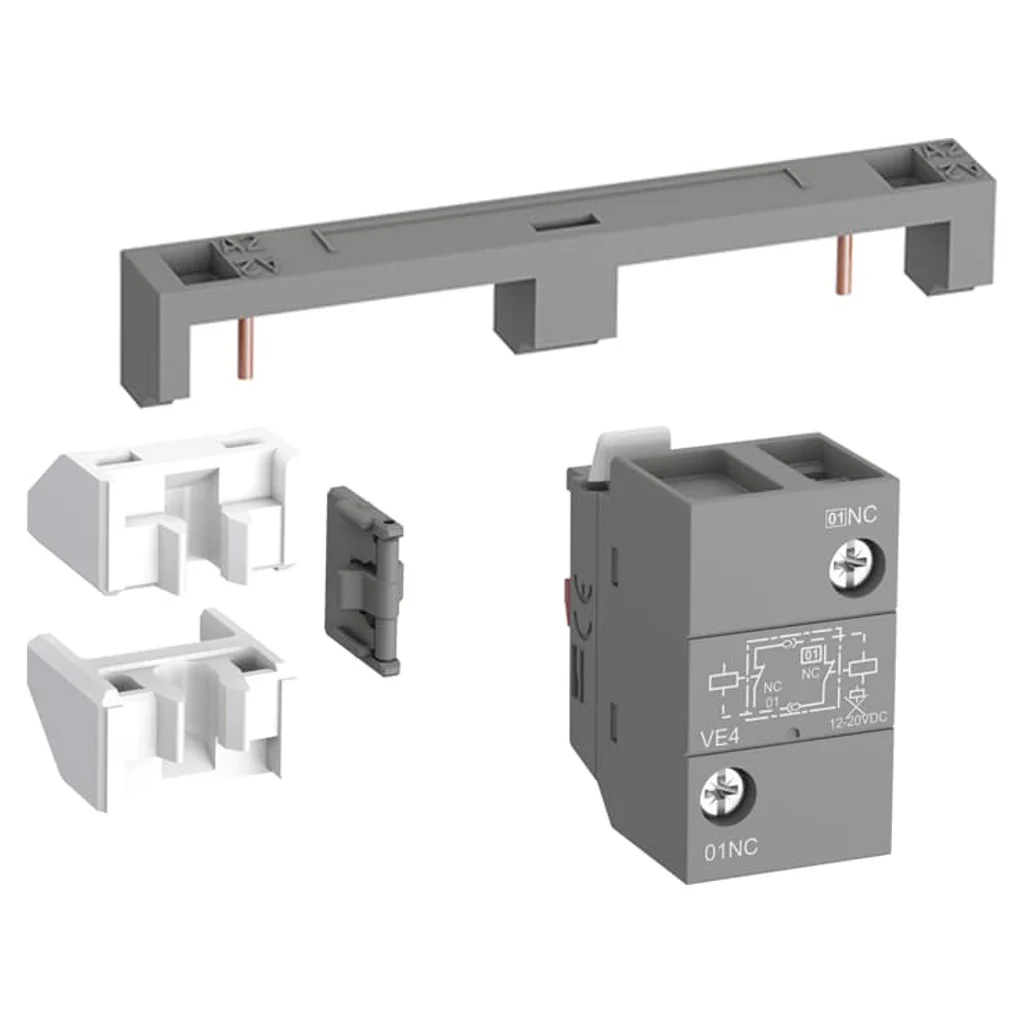

VEM4 mechanical and electrical interlock set for the interlocking of two AF contactors
-
VEM4 set includes a mechanical interlock unit VM4 with 2 fixing clips (BB4) and a VE4 electrical interlock block with A2-A2 connection
-
Fixing the electrical interlock block to the contactor front face connects the 2 built-in N.C. interlocking contacts with the two coils
-
VE4 block must be used with A2-A2 connection to respect the electrical connection diagram
Product Specification
|
Brand |
ABB |
|
Product Type |
Mechanical and Electrical Interlock Unit |
|
Product Code |
1SBN030111R1000 |
|
Model |
VEM4 |
|
Technical |
|
|
Suitable For |
AF09, AF12, AF16, AF26, AF30, AF38, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFS09, AFS12, AFS16, AFS26, AFS30, AFS38, AF09B, AF09ZB, AF12B, AF12ZB,AF16B, AF16ZB, AF26B, AF26ZB, AF30B, AF30ZB, AF38B, AF38ZB |
|
Rated Insulation Voltage (Ui) |
acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
|
Rated Impulse Withstand Voltage (Uimp) |
6 kV |
|
Number Of Auxiliary Contacts NC |
1 |
|
Number Of Auxiliary Contacts NO |
1 |
|
Tightening Torque |
Auxiliary Circuit 1.2 N·m |
|
Wire Stripping Length |
Auxiliary Circuit 10 mm |
|
Terminal Type |
Screw Terminals |
|
Dimensions |
|
|
Product Net Width |
25 mm |
|
Product Net Height |
43 mm |
|
Product Net Depth / Length |
31.6 mm |
|
Product Net Weight |
0.035 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $17.10
-70%$17.10
$5.13
