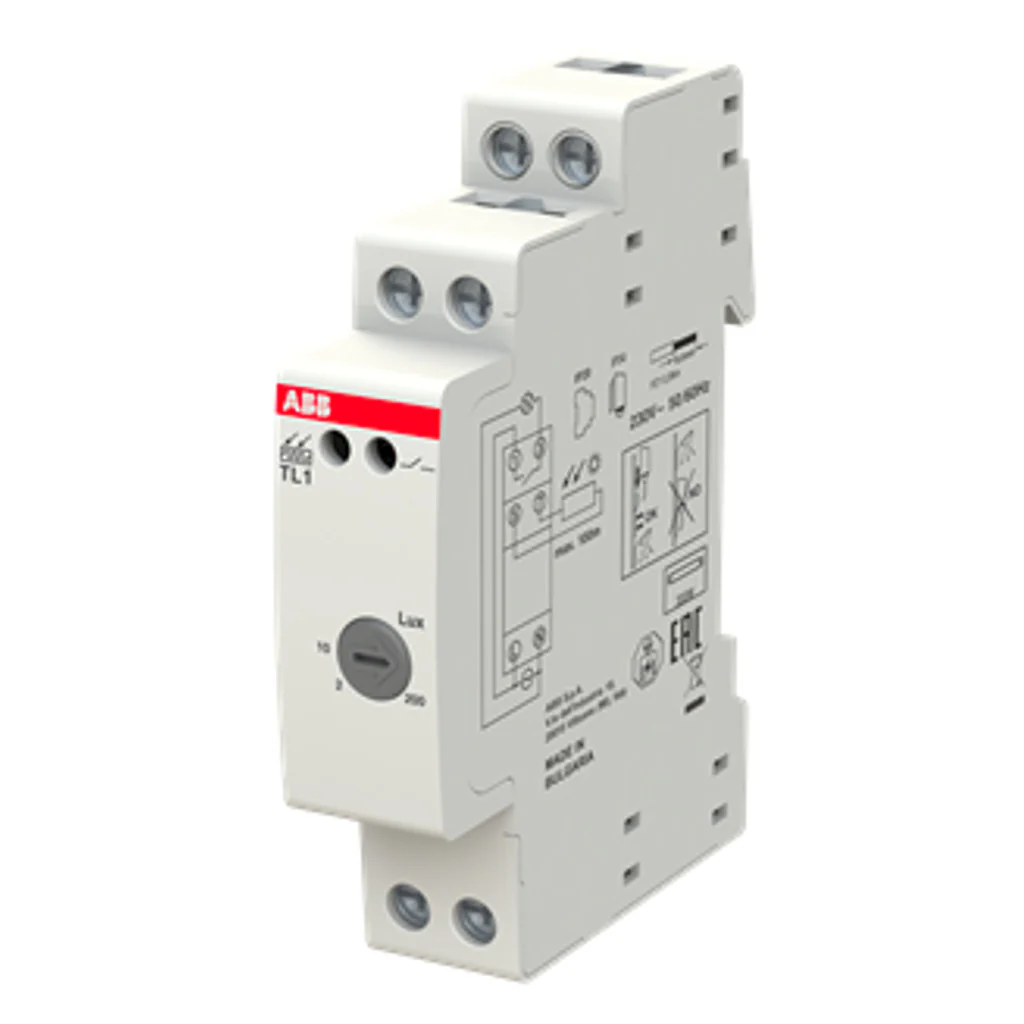

ABB TL1 Twilight Switch 1 Module 2CSM229921R1341
Product Description
-
TL1 twilight switch allows to switch ON and switch OFF lighting devices according to a scheduled level of the ambient light
-
It is used in combination with an external sensor to detect if the ambient light is higher or lower than the set level
-
A switching delay prevents them from operating unnecessarily when the light intensity suddenly changes (e.g. lightning, moving vehicles, etc.)
-
The TL1 twilight switch 1 channel is preset with a 10 LUX from factory and it is equipped with 2 signalling LEDs that indicate the setpoint value and display the status of the contact
Product Specification
|
Brand |
ABB |
|
Product Type |
Twilight Switches |
|
Model |
TL1 |
|
Product Code |
2CSM229921R1341 |
|
Technical |
|
|
Supply Voltage |
110 ... 230 V AC |
|
Function |
|
|
Maximum Switching Power |
1000
W |
|
Power Consumption (@Pcons) |
0.4
W |
|
Rated Frequency (f) |
50 ... 60 Hz |
|
Power Supply |
110 ... 230 V AC |
|
Power Loss |
0.9 W |
|
Number Of Channels |
1 |
|
Delay Time (?) |
On
20.7 ... 25.3 second [unit of time] |
|
Tightening Torque |
1.2 N·m |
|
Contact Type |
Normally Open (NO) |
|
Lamp Type |
LED |
|
Meter Type |
Analog |
|
Mounting Type |
DIN rail |
|
Screw Type |
PZ1 |
|
Illuminance |
2 ... 200 lx |
|
Number Of Batteries |
0 |
|
Cable Length |
100 m |
|
Connecting Capacity |
Solid 6 mm² |
|
Terminal Type |
Screw Terminals |
|
Color |
White |
|
Lamp Color |
Red / Green |
|
Standards |
EN 60669-1, EN 60662-2-1, EN 60730-1 |
|
Environmental |
|
|
Ambient Air Temperature |
Operation
-25 ... 55 °C |
|
Degree Of Protection |
Housing IP20 |
|
Dimensions |
|
|
Width In Number Of Modular Spacings |
1 |
|
Product Net Width |
17.5 mm |
|
Product Net Height |
86 mm |
|
Product Net Depth / Length |
65 mm |
|
Product Net Weight |
0.155 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Original: $112.55
-70%$112.55
$33.77
