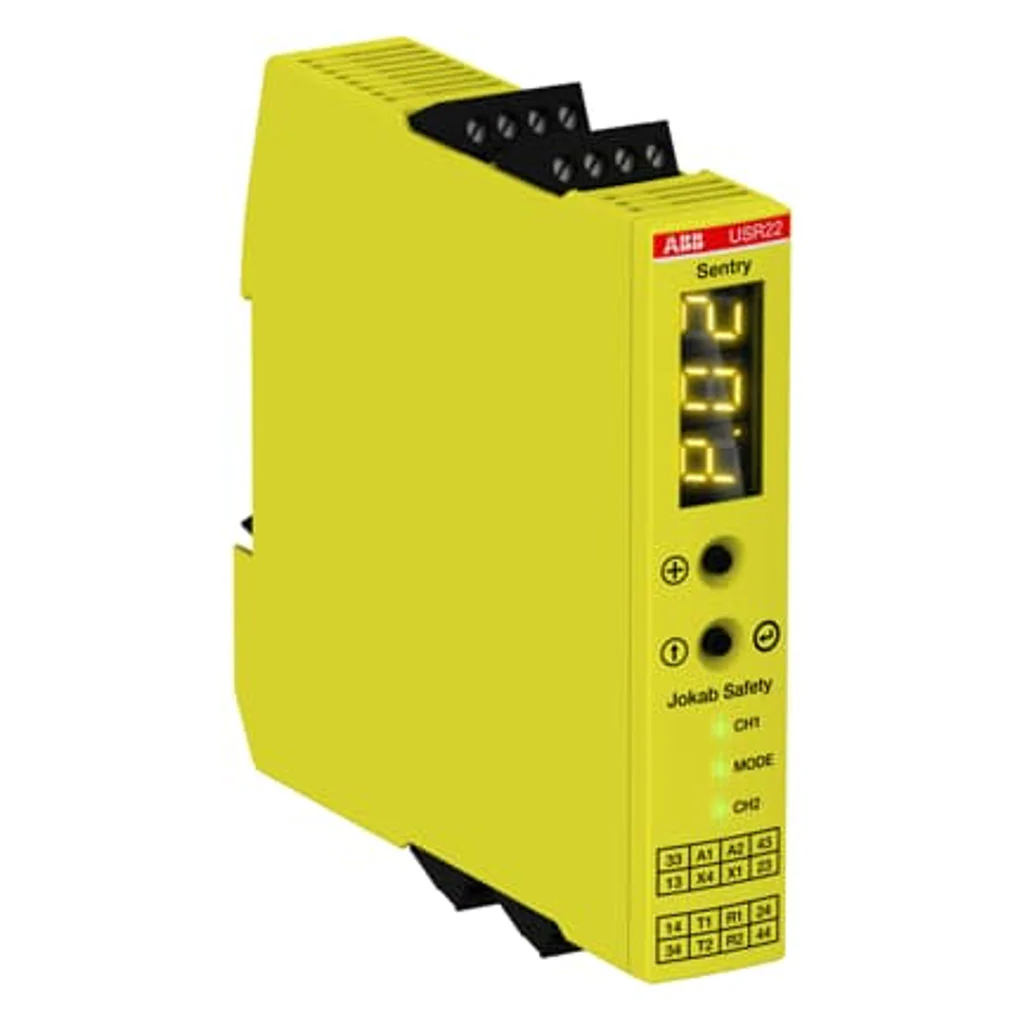

ABB Sentry USR22 Safety Relay/Timer 2TLA010070R0400

Product Description

• Universal safety relay/safety timer with relay outputs 2NO+2 delayable NO, +24VDC power supply and screw terminals

• For monitoring of safety devices with contacts, 1 or 2 equivalent or antivalent channels, safety devices with OSSD outputs, two-hand devices, safety mats and safety edges/bumpers

• Timer function 0-999 seconds with a better accuracy than 1%: OFF-delay, ON-delay, Time bypass and Time reset

• A display on front facilitates configuration and troubleshooting by displaying error codes and error log

• A custom configuration can be protected by password.

• Manual or automatic reset selectable

Product Specification

Brand	ABB
Product Type	Safety Relay/Timer
Product Code	2TLA010070R0400
Model	Sentry USR22
Technical
Degree Of Protection	IP20
Performance Level (PL)	Up to e
Rated Control Supply Voltage (Us)	24 V DC
Dimensions
Product Net Depth / Length	120 mm
Product Net Height	120 mm
Product Net Width	22.5 mm
Product Net Weight	0.229 kg
Warranty	As Per Manufacturer Terms and Condition
