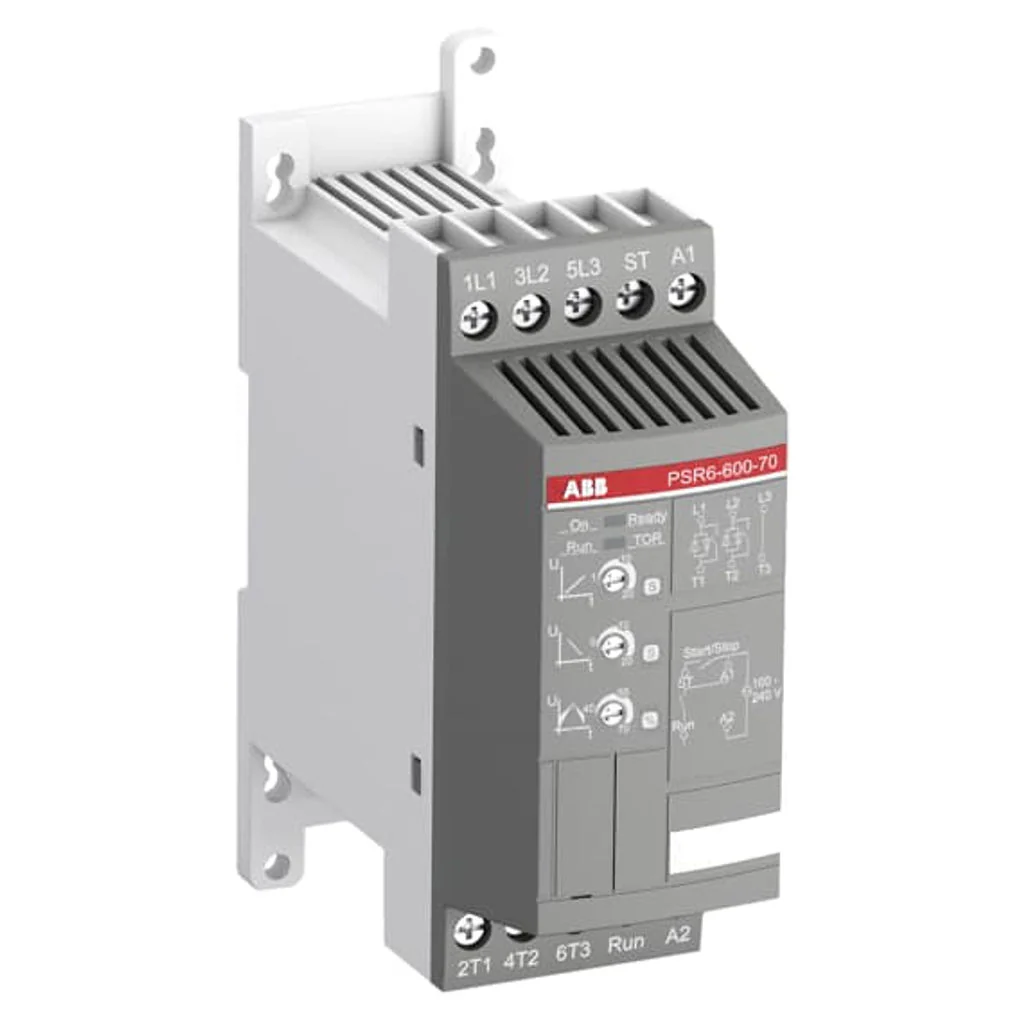

ABB PSR6-600-70 Soft Starter 1SFA896104R7000

Product Description

Two-phase controlled
Soft start and soft stop with voltage ramp
Built-in bypass for energy saving and easy installation
Fieldbus communication with fieldbus plug adapter and the fieldbus plug
Softstarter PSR6-600-70 for max 600V main voltage and 100-240V 50/60Hz control supply voltage

Product Specification

Brand	ABB
Product Type	Soft Starter
Product Code	1SFA896104R7000
Model	PSR6-600-70
Technical
Rated Operational Voltage	208 ... 600 V AC
Rated Control Supply Voltage (Us)	100 ... 240 V AC
Rated Control Circuit Voltage (Uc)	50 Hz / 60 Hz 100 ... 240 V AC DC Operation 24 V
Rated Frequency (f)	50/60 Hz Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe)	(230 V) 1.5 kW (400 V) 3 kW (500 V) 4 kW
Rated Operational Current - In-Line Connection (Ie)	6.8 A
Service Factor Percentage	100 %
Overload Protection	Recommended MS116 4.00 ... 10.00
Integrated Electronic Overload	No
Adjustable Rated Motor Current Ie	No
Starting Capacity At Maximum Rated Current Ie	4xIe for 6s
Ramp Time	0 ... 20 second [unit of time] 1 ... 10 second [unit of time]
Initial Voltage During Start	40 ... 70 %
Step Down Voltage Special Ramp	100 ... 60 %
Current Limit Function	No
Switch For Inside Delta Connection	No
Run Signal Relay	Yes
By-Pass Signal Relay	No
Fault Signal Relay	No
Overload Signal Relay	No
Signal Indication Completed Start Ramp (LED)	Green
Signal Indication Ready To Start/Standby On (LED)	Green
Signal Indication Running R (LED)	Green
Signal Indication Ramping Up/Down (LED)	Green
*Number Of Starts Per Hour At 3.5Ie For 7 Sec. 50% On Time 50% Off Time**	10
Communication	FiledBusPlug(Optional)
Degree Of Protection	IP20
Terminal Type	Screw Terminals
Connecting Capacity Main Circuit	Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit	1 x 0.75 ... 2.5 2 x 0.75 ... 2.5 mm² Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit	Rigid 1/2 x 0.75 ... 2.5 mm²
Tightening Torque	Control Circuit 1 N·m Main Circuit 1 N·m Supply Circuit 1 N·m
Product Main Type	PSR6
Technical UL/CSA
Maximum Operating Voltage UL/CSA	Main Circuit 600 V
Ampere Rating UL/CSA	6 A
Tightening Torque UL/CSA	Control Circuit 8.9 in·lb Main Circuit 8.9 in·lb Supply Circuit 8.9 in·lb
Environmental
Ambient Air Temperature	Operation -25 ... +60 °C Storage -40 ... +70 °C
Dimensions
Product Net Width	114 mm
Product Net Height	140 mm
Product Net Depth / Length	45 mm
Product Net Weight	0.4 kg
Warranty	As Per Manufacturer Terms and Condition

$63.96

Original: $213.19

-70%

ABB PSR6-600-70 Soft Starter 1SFA896104R7000—

$213.19

$63.96

Original: $213.19

-70%

ABB PSR6-600-70 Soft Starter 1SFA896104R7000—

$213.19

$63.96
