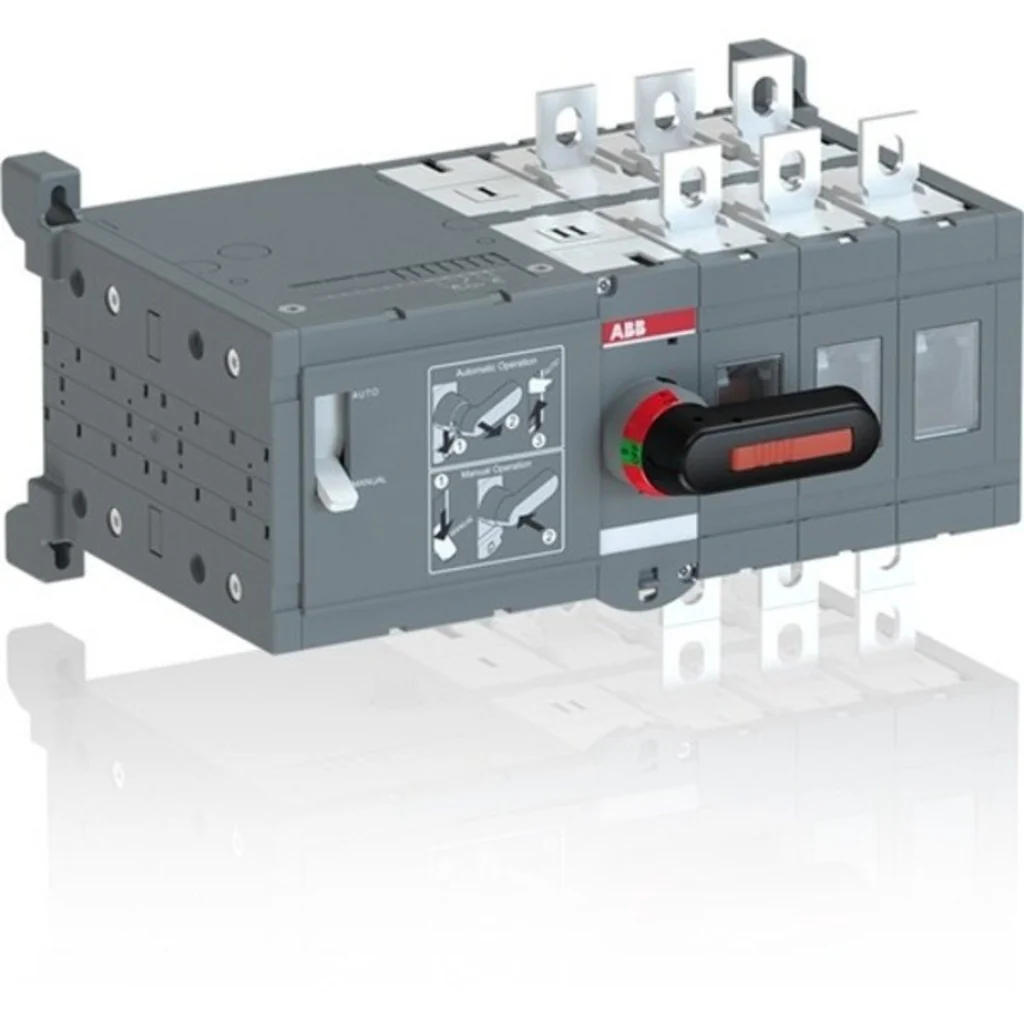

ABB OT Motorized Changeover Switch Three Pole 160A-2500A

Product Description

• Changeover switches, motor operated including a shaft, handle & bridging bars ( motor voltage Ue 110-240V AC/DC )

• Rated Impulse Withstand Voltage (U_imp) : 12 kV

• Rated Insulation Voltage (U_i) : 1000 V

• Rated Operational Voltage : 1000 V

• Motor Operational Voltage : 220 ... 240 V AC

• Pollution Degree : 3

• Handle Color : Black

• Handle Type : Direct mounted handle

• Switches Operating Mechanism : Mechanism at the End of the Switch

• Distance Between Phases : Standard

• Position of Line Terminals : Top In - Bottom Out, Bottom In - Top Out

• Operating Mode : Front operated

• Mounting Type : Base mounting

• Number of Poles : 3

• Degree of Protection : Front IP20

Product Specification

Rated Current (A)	Product Id	Type
160	OTM160E3CM230C	1SYN022845R8610
200	OTM200E3CM230C	1SYN022845R8960
250	OTM250E3CM230C	1SYN022845R9260
315	OTM315E3CM230C	1SYN022847R1210
400	OTM400E3CM230C	1SYN022847R1630
630	OTM630E3CM230C	1SYN103567R1001
800	OTM800E3CM230C	1SYN103570R1001
1000	OTM1000E3CM230C	1SYN112677R1001
1250	OTM1250E3CM230C	1SYN112676R1001
1600	OTM1600E3CM230C	1SYN112678R1001
2000	OTM2000E3CM230C	1SYN112709R1001
2500	OTM2500E3CM230C	1SYN112710R1001
