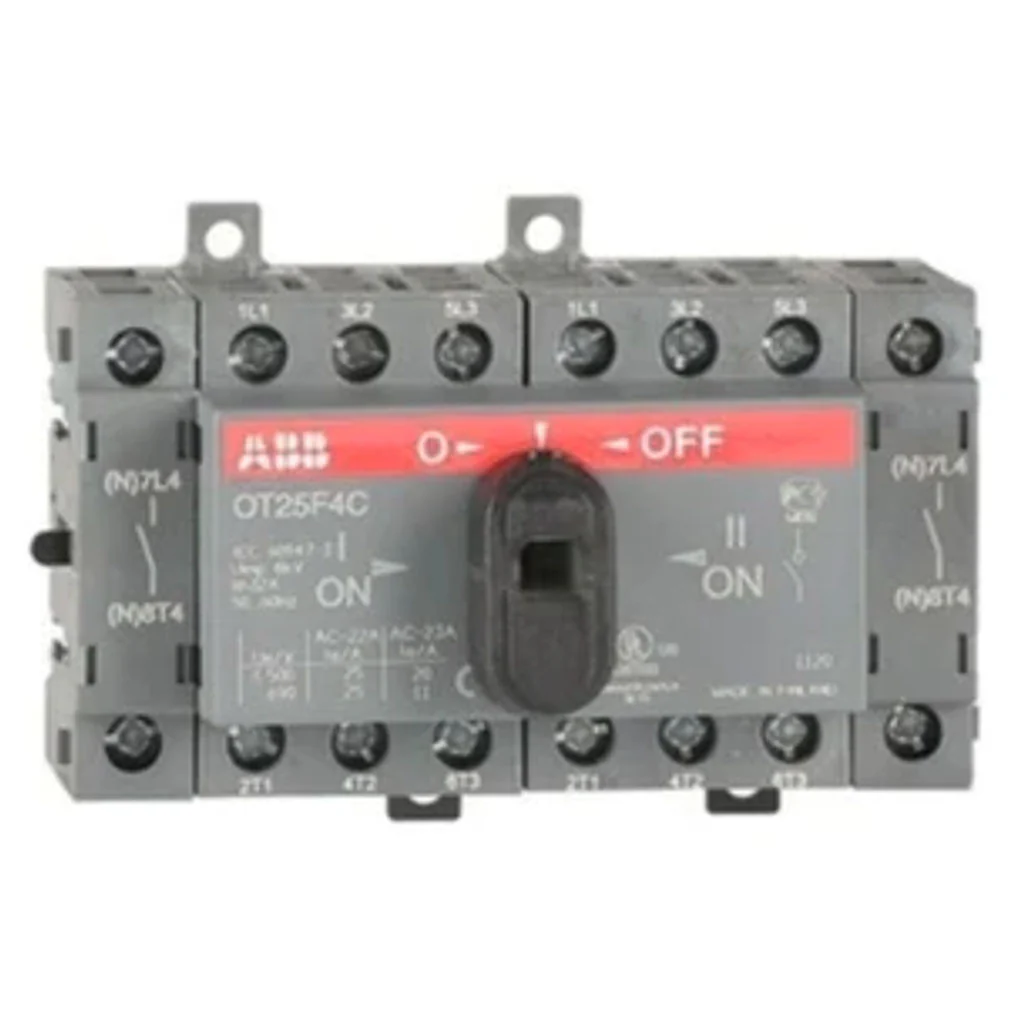

ABB OT Manual Changeover Switch Four Pole 16A-125A

Product Description

• Manual changeover switches, I-O-II -operation

• Handle and shaft need to be ordered separately, Open transition

• Conventional Thermal Current (I_the) : Fully Enclosed 25 A

• Rated Impulse Withstand Voltage (U_imp) : 8 kV

• Rated Insulation Voltage (U_i) : 750 V

• Rated Operational Voltage : 750 V

• Rated Short-time Withstand Current (I_cw) : for 1 s 0.5 kiloampere rms

• Pollution Degree : 3

• Handle Color : Black

• Handle Type : Handle and shaft not included

• Switches Operating Mechanism : Mechanism on Top of the Switch

• Distance Between Phases : Standard

• Position of Line Terminals : Top In - Bottom Out, Bottom In - Top Out

• Operating Mode : Front operated

• Mounting Type : Base mounting

• Number of Poles : 4

• Cable Cross-Section : 0.75 ... 10 mm²

• Degree of Protection : Front IP20

• Product Net Width : 96 mm

• Product Net Height : 68 mm

• Product Net Depth / Length : 68 mm

• Product Net Weight : 0.31 kg

Product Specification

Rated Current(A)	Product Id	Model
16	1SYN104831R1001	OT16F4C
25	1SYN104877R1001	OT25F4C
40	1SYN104934R1001	OT40F4C
63	1SYN105369R1001	OT63F4C
80	1SYN105418R1001	OT80F4C
100	1SYN105019R1001	OT100F4C
125	1SYN105054R1001	OT125F4C
