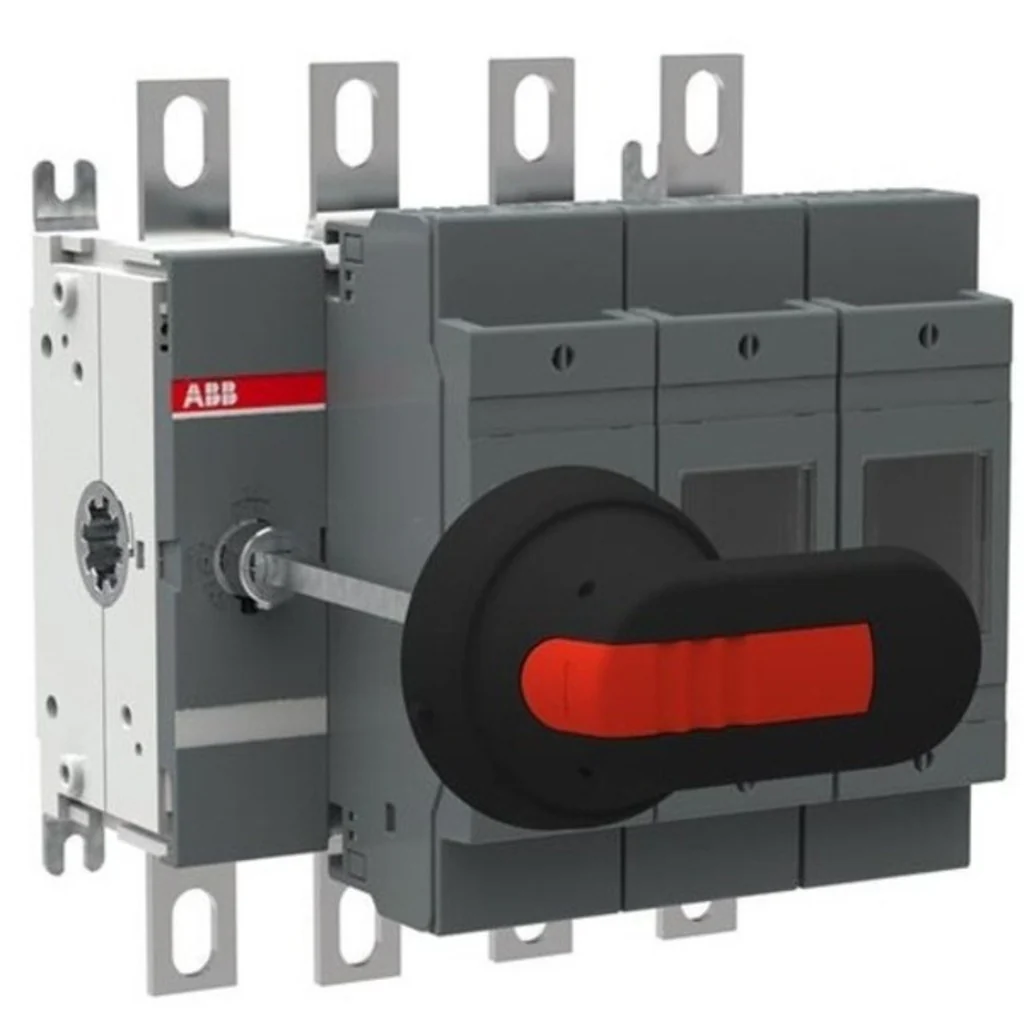

ABB OS Switch Disconnector Fuse Three Pole 200A-800A

Product Description

• 200A-800A SDF supplied with shaft and handle, Mechanism at the end of the switch fuse

• Rated Impulse Withstand Voltage (U_imp) : 12 kV

• Rated Insulation Voltage (U_i) : 1000 V

• Rated Operational Voltage : 500 V

• Rated Short-time Withstand Current (I_cw) : for 1 s 14 kiloampere rms

• Rated Conditional Short-Circuit Current (I_nc) : (690 V) 80 kA

• Pollution Degree : 3

• Handle Type : Handle and shaft included

• Switches Operating Mechanism : 03 (Left Side)

• Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out

• Fuse System : British Standard

• Operating Mode : Front Operated

• Standards : IEC 60947-3

• Mounting Type : Base mounting

• Number of Poles : 3

• Terminal Type : Lug terminals

Product Specification

Rated Cutrrent (A)	Fuse Size	Model	Product Id
200	B1-B2	OS200B03P	1SYN022709R9330
250	B1-B3	OS250B03P	1SYN022750R6660
315	B1-B4	OS315B03P	1SYN022719R0680
400	B1-B4	OS400B03P	1SYN022719R0840
630	C1-C2	OS630B03P	1SYN022825R5850
800	C1-C3	OS800B03P	1SYN022825R7550
