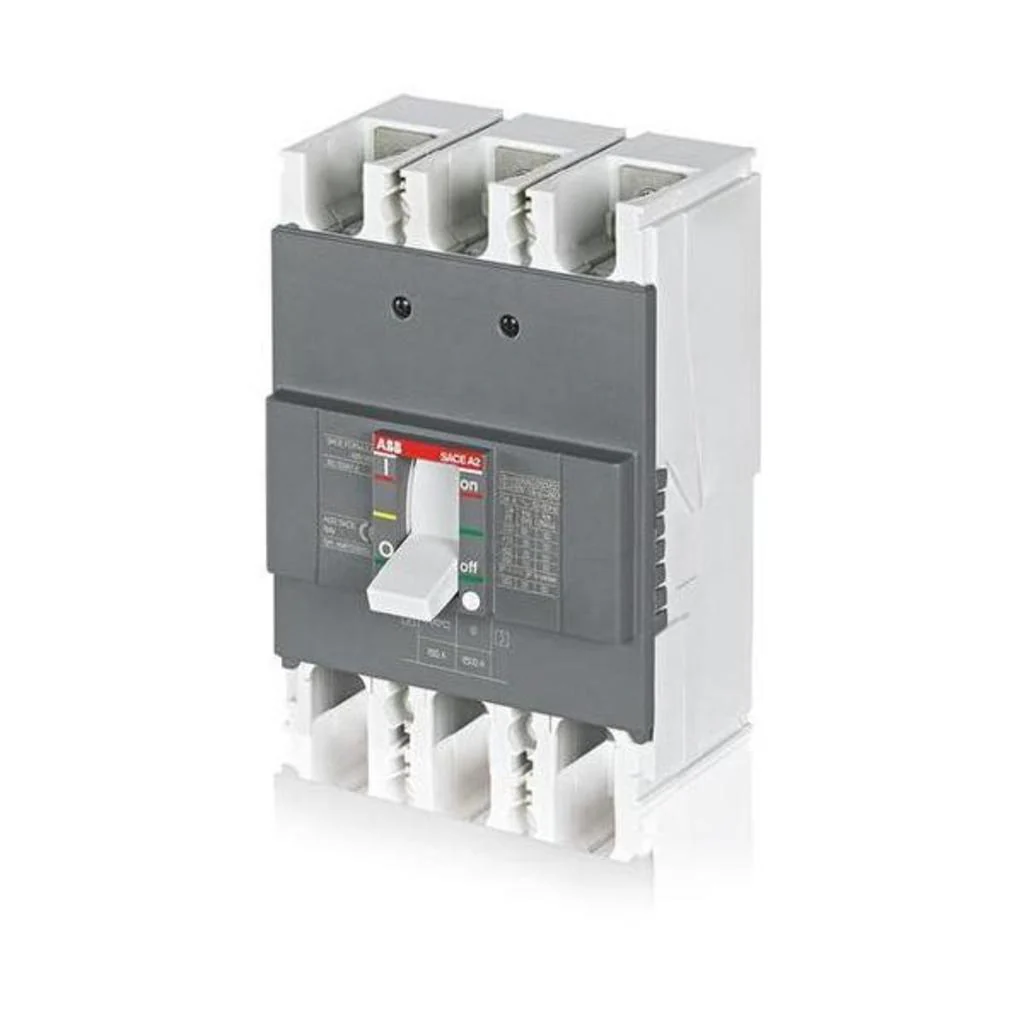

ABB Formula MCCB 18KA 16-125A Three-Pole - A1B 125 TMF 3p

Product Description

• Sace FORMULA link in accordance with IEC 60439 Standard– FORMULA link is a component of a power distribution system which divides the main power supply over different users.

• The FORMULA link is characterized on the supply side by a main circuit-breaker which protects the whole distribution system, and on the load side by smaller sized circuit breakers, dedicated to the individual users.

• FORMULA link assembly for total discrimination between upstream and downstream devices

• Fixed thermal magnetic release throughout the range

• Conforms to IEC 60947-2

• Common range of accessories

• Suitable for DC application till 250Vdc

• Operation voltage till 550VAC, insulation voltage of 690VAC and impulse voltage of 6KV

• Product Name : Moulded Case Circuit Breaker

• Product Main Type : SACE FORMULA

• Product Type : CB

• Number of Poles : 3

• Product Net Weight :0.7 kg

• Product Net Width : 76.2 mm

• Product Net Height :130 mm

• Product Net Depth / Length : 60 mm

• Electrical Durability : 1500 cycle

• Mechanical Durability : Nr. Operations 8500 cycle

• Terminal Connection Type : Front

• Version : F

Product Specification

Rated current	Type	Product id
16 A	1SDA068747R1	A1B 125 TMF 16-300 3p F F
25 A	1SDA066699R1	A1B 125 TMF 25-300 3p F F
32 A	1SDA068758R1	A1B 125 TMF 32-320 3p F F
40 A	1SDA066701R1	A1B 125 TMF 40-400 3p F F
50 A	1SDA066702R1	A1B 125 TMF 50-500 3p F F
63 A	1SDA068769R1	A1B 125 TMF 63-630 3p F F
80 A	1SDA066705R1	A1B 125 TMF 80-800 3p F F
100 A	1SDA066707R1	A1B 125 TMF 100-1000 3p F F
125 A	1SDA066708R1	A1B 125 TMF 125-1250 3p F F
