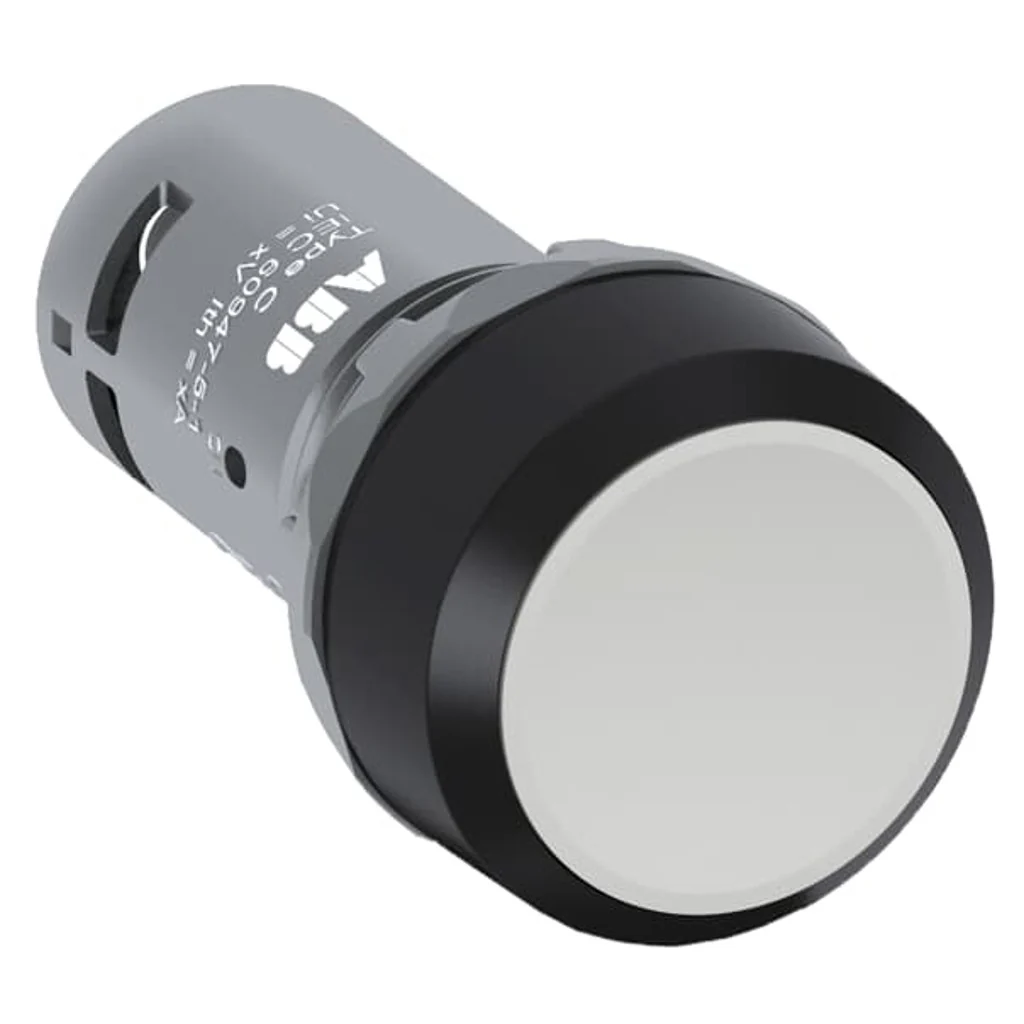

ABB Flush Pushbutton Maintained 1 NO

Brand

ABB

Product Type

Pushbutton

Code | Model | Color

1SFA619101R1011 | CP2-10R-10 | Red

1SFA619101R1012 | CP2-10G-10 | Green

1SFA619101R1013 | CP2-10Y-10 | Yellow

1SFA619101R1014 | CP2-10L-10 | Blue

1SFA619101R1015 | CP2-10W-10 | White

1SFA619101R1016 | CP2-10B-10 | Black

1SFA619101R1017 | CP2-10U-10 | Grey

Technical

Ambient Air Temperature

Operation -25 ... +70 °C
Storage -40 ... +85 °C

Actuator Type

Flush

Bezel Material

Black Plastic

Illumination

Non-illuminated

Function

Maintained

Number Of Auxiliary Contacts NO

1

Degree Of Protection

Front IP66, Front IP67, Front IP69K, Terminals IP20

Enclosure Type NEMA

Type1
Type12
Type13
Type3R
Type4
Type4X

Rated Frequency (f)

50 / 60 Hz

Rated Operational Voltage

Maximum 300 V AC/DC

Rated Operational Current DC-13 (Ie)

(24 V) 0.3 A
(125 V) 0.2 A

Rated Operational Current AC-15 (Ie)

(240 V) 1 A

Mechanical Durability

0.5 million

Terminal Type

Screw Terminals

Tightening Torque

0.8 N·m

Wire Stripping Length

6 mm

Dimensions

Product Net Width

0.03 m

Product Net Height

0.03 m

Product Net Depth / Length

0.055 m

Product Net Weight

0.018 kg

Warranty

As Per Manufacturer Terms and Condition
