ABB Extended Pushbutton Maintained 1 NO

Brand

ABB

Product Type

Pushbutton

Code | Model | Color

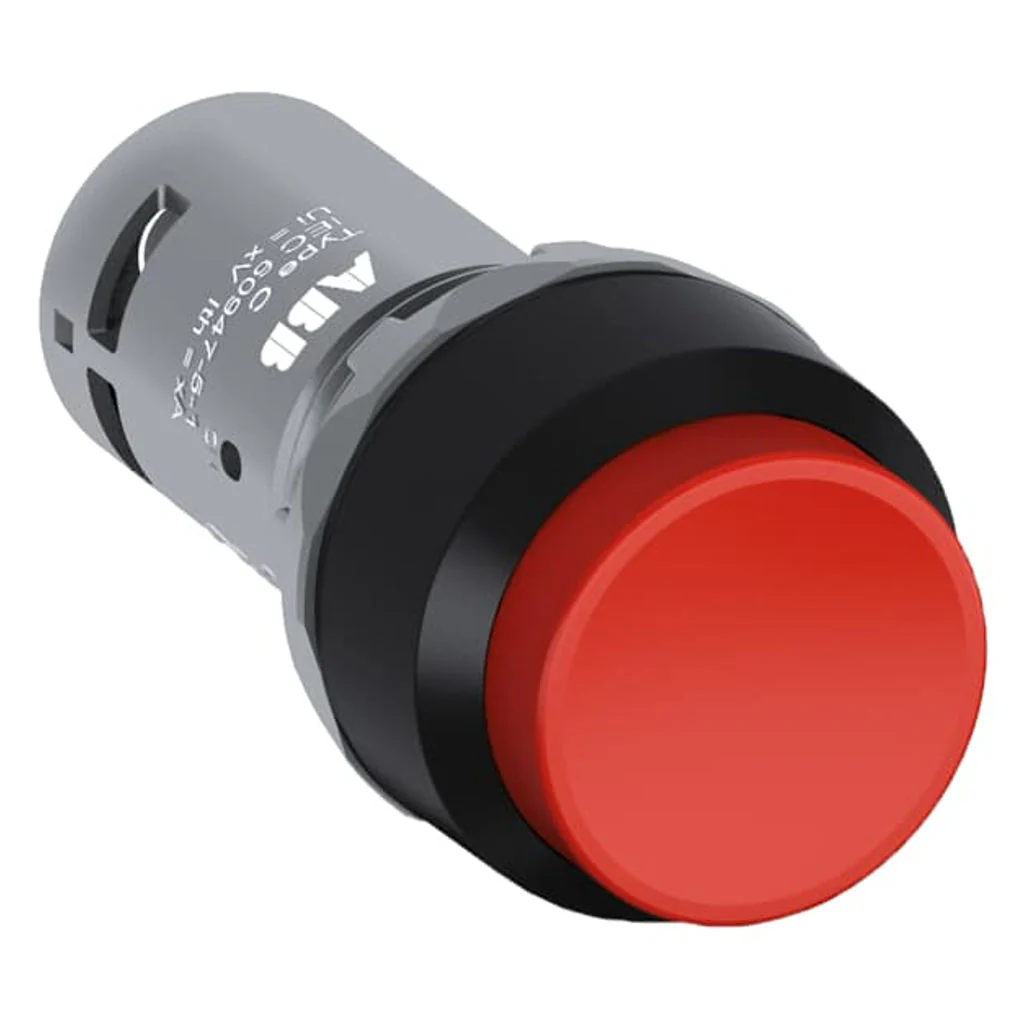

1SFA619103R1011 | CP4-10R-10 | Red

1SFA619103R1012 | CP4-10G-10 | Green

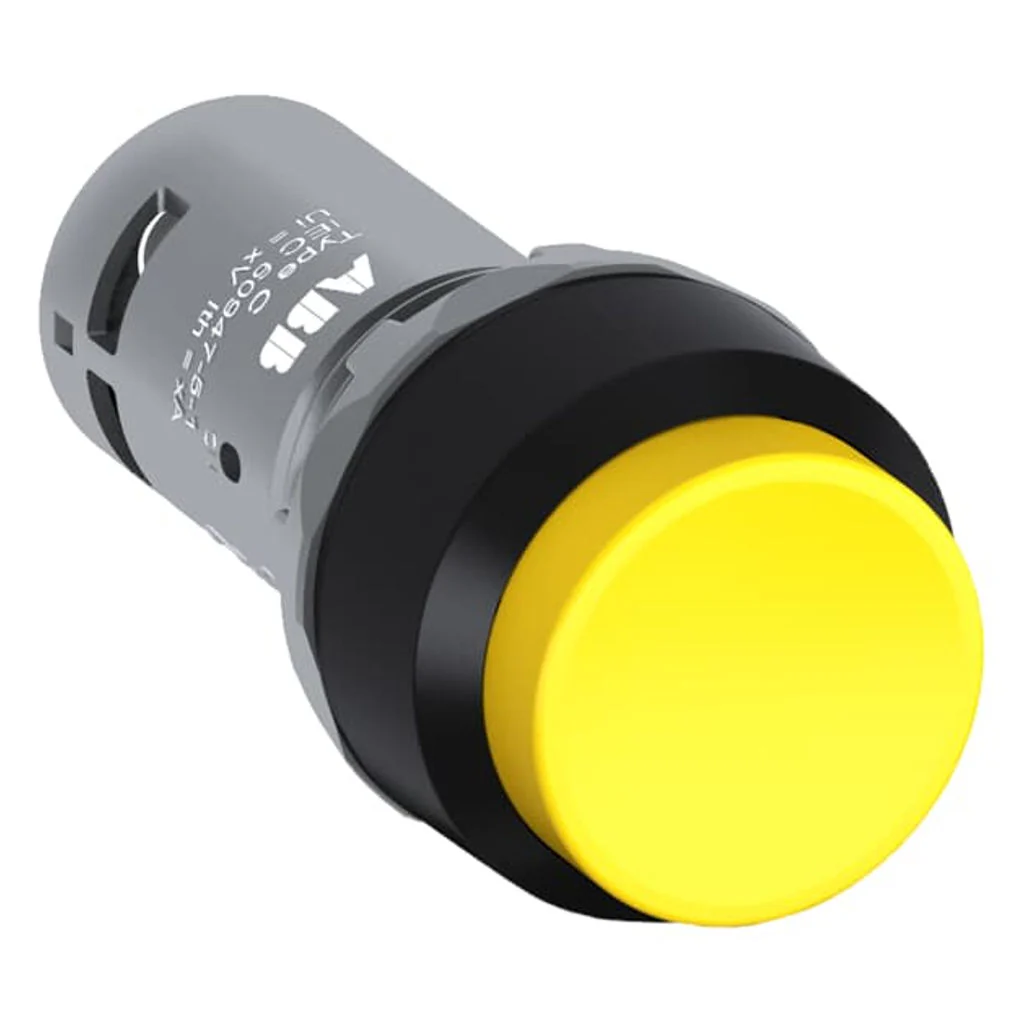

1SFA619103R1013 | CP4-10Y-10 | Yellow

1SFA619103R1014 | CP4-10L-10 | Blue

1SFA619103R1015 | CP4-10W-10 | White

1SFA619103R1016 | CP4-10B-10 | Black

1SFA619103R1017 | CP4-10U-10 | Grey

Technical

Ambient Air Temperature

Operation -25 ... +70 °C
Storage -40 ... +85 °C

Actuator Type

Extended

Bezel Material

Black Plastic

Illumination

Non-illuminated

Function

Maintained

Number Of Auxiliary Contacts NO

1

Degree Of Protection

Front IP66, Front IP67, Front IP69K, Terminals IP20

Enclosure Type NEMA

Type1
Type12
Type13
Type3R
Type4
Type4X

Rated Frequency (f)

50 / 60 Hz

Rated Operational Voltage

Maximum 300 V AC/DC

Rated Operational Current DC-13 (Ie)

(24 V) 0.3 A
(125 V) 0.2 A

Rated Operational Current AC-15 (Ie)

(240 V) 1 A

Mechanical Durability

0.5 million

Terminal Type

Screw Terminals

Tightening Torque

0.8 N·m

Wire Stripping Length

6 mm

Dimensions

Product Net Width

0.03 m

Product Net Height

0.03 m

Product Net Depth / Length

0.06 m

Product Net Weight

0.018 kg

Warranty

As Per Manufacturer Terms and Condition
