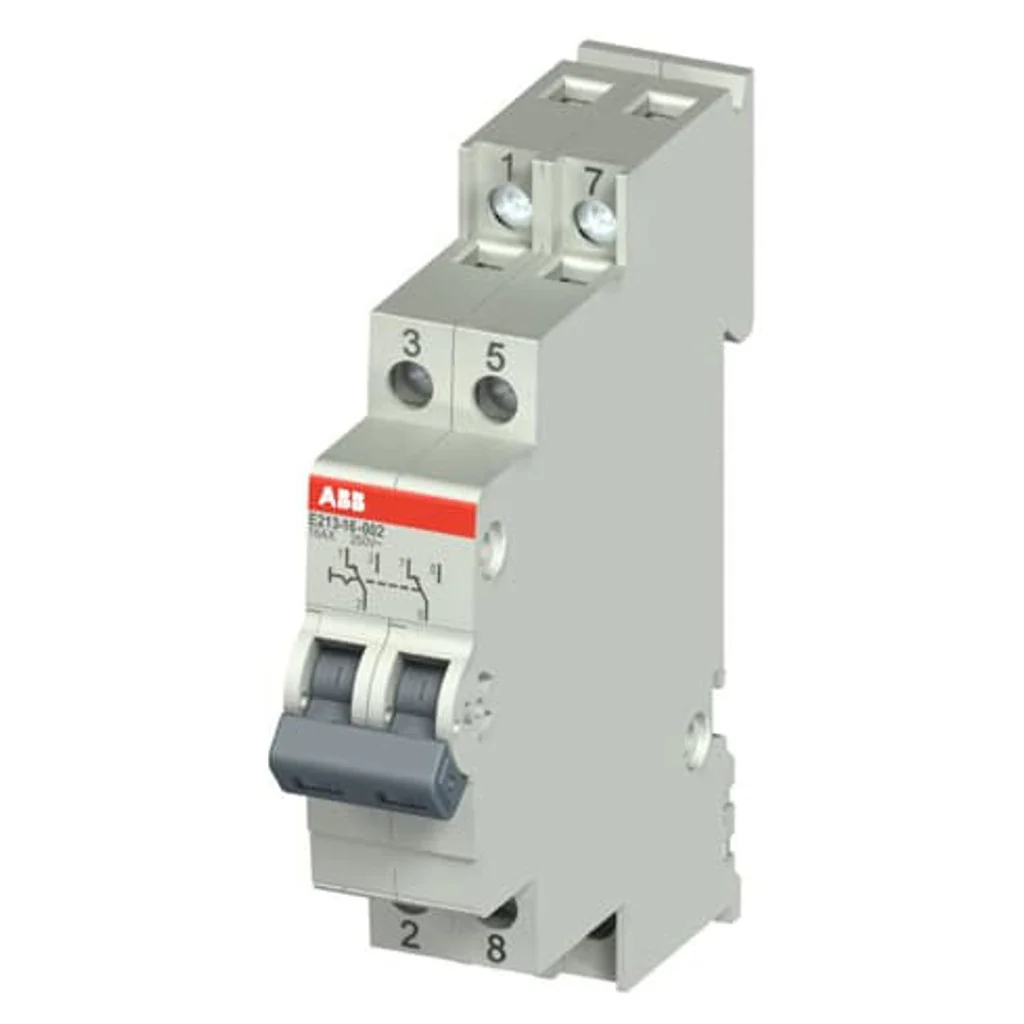

ABB E213-16-002 Change Over Switch 2P 16A 2CCA703045R0001
Product Specification
|
Brand |
ABB |
|
Product Type |
Changeover Switch |
|
Model |
E213-16-002 |
|
Product Code |
2CCA703045R0001 |
|
Technical |
|
|
Standards |
EN60669-1 |
|
Rated Voltage (Ur) |
Minimum 24 V |
|
Rated Operational Voltage |
250 V |
|
Rated Current (I N) |
16 A |
|
Power Loss |
0.82 W |
|
Number Of Poles |
2 |
|
Number Of Contacts Co |
2 |
|
Number Of Contacts Nc |
0 |
|
Number Of Contacts No |
0 |
|
Number Of Main Contacts Nc |
0 |
|
Number Of Main Contacts No |
0 |
|
Number Of Auxiliary |
2 |
|
Contacts Co (SPDT) Options Provided |
2 CO |
|
Environmental |
|
|
Degree Of Protection |
IP20 |
|
Dimensions |
|
|
Width In Number Of |
1 |
|
Modular Spacings |
|
|
Product Net Width |
18mm |
|
Product Net Height |
85mm |
|
Product Net Depth / Length |
67.5mm |
|
Product Net Weight |
87 g |
|
Product Net Length |
68 mm |
|
Built-In Depth (t 2 ) |
68 mm |
|
Warranty |
As Per Manufacturer Terms and Condition |
