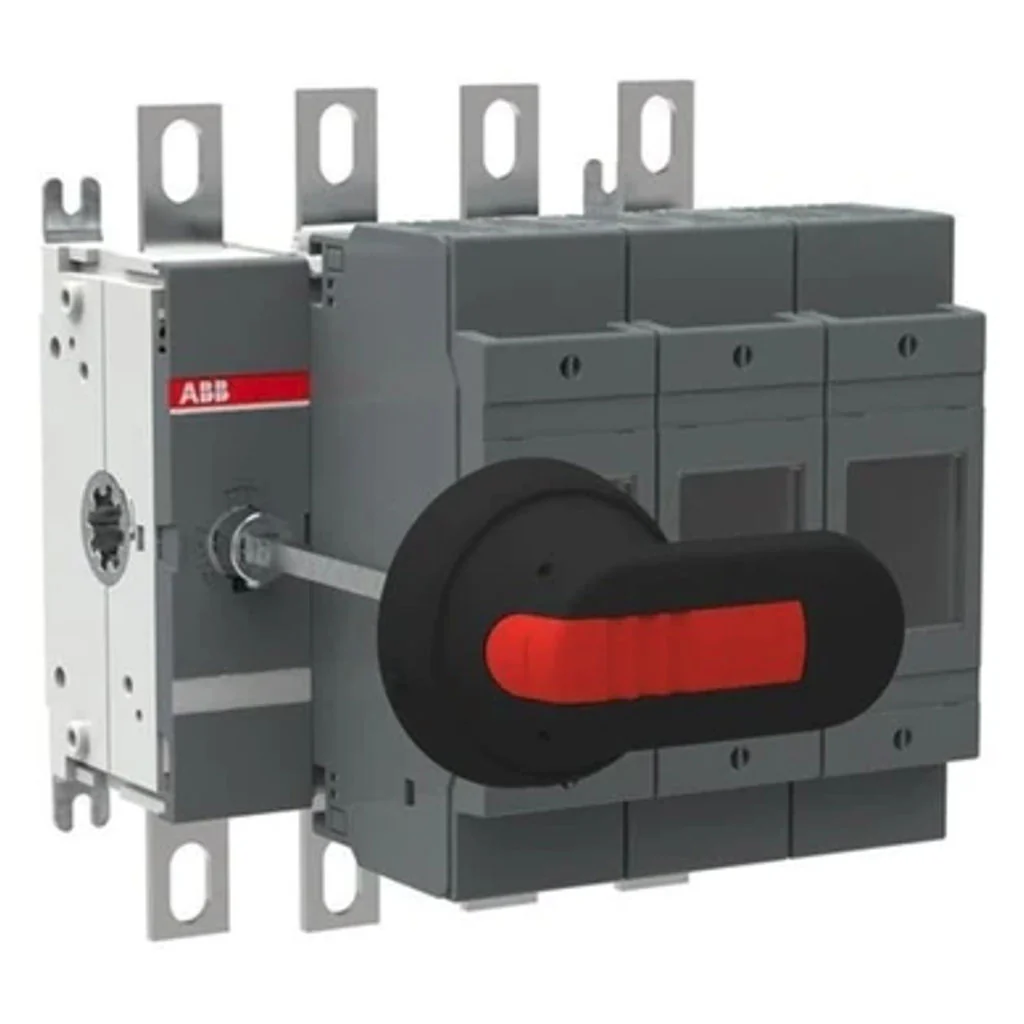

ABB DIN Type OS Switch Disconnector Fuse 200-800 A Three Pole & Neutral

Product Description

• Switch Fuses,Front Operated,4-pole,03 (Left Side),DIN,0,Handle and shaft included,Detachable Neutral Link Integrated Into the Mechanism

• Handle Type : Handle and shaft included

• Fourth Pole Type : Detachable Neutral Link Integrated Into the Mechanism

• Switches Operating Mechanism : 03 (Left Side)

• Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out

• Fuse System : DIN

• Operating Mode : Front Operated

• Standards : IEC 60947-3

• Special Functions : Detachable Neutral

• Mounting Type : Base mounting

• Number of Poles : 3+N

• Product Net Width : 177 mm

• Product Net Height : 199 mm

• Product Net Depth / Length : 191 mm

• Product Net Weight : 3.05 kg

• Terminal Type : Lug terminals

• Terminal Width : 20 mm

• Tightening Torque : 15 ... 22 N·m

• Conventional Free-air Thermal Current (I_th) : q = 40 °C 200 A

• Conventional Thermal Current (I_the) : Fully Enclosed 200 A

• Rated Impulse Withstand Voltage (U_imp) : 12 kV

• Rated Insulation Voltage (U_i) : 1000 V

• Rated Operational Voltage : 500 V

• Rated Short-time Withstand Current (I_cw) : for 1 s 8 kiloampere rms

• Power Loss : at Rated Operating Conditions per Pole 17 W

• Pollution Degree : 3

Product Specification

Rated Current (A)	Fuse Size	Type	Product Id
200	0	OS200D03N3P	1SYN022749R8710
250	0-1	OS250D03N3P	1SYN022749R9430
315	0-2	OS315D03N3P	1SYN953047P3001
400	0-2	OS400D03N3P	1SYN022753R9320
630	3	OS630D03N3P	1SYN100858R1001
800	3	OS800D03N3P	1SYN100859R1001
