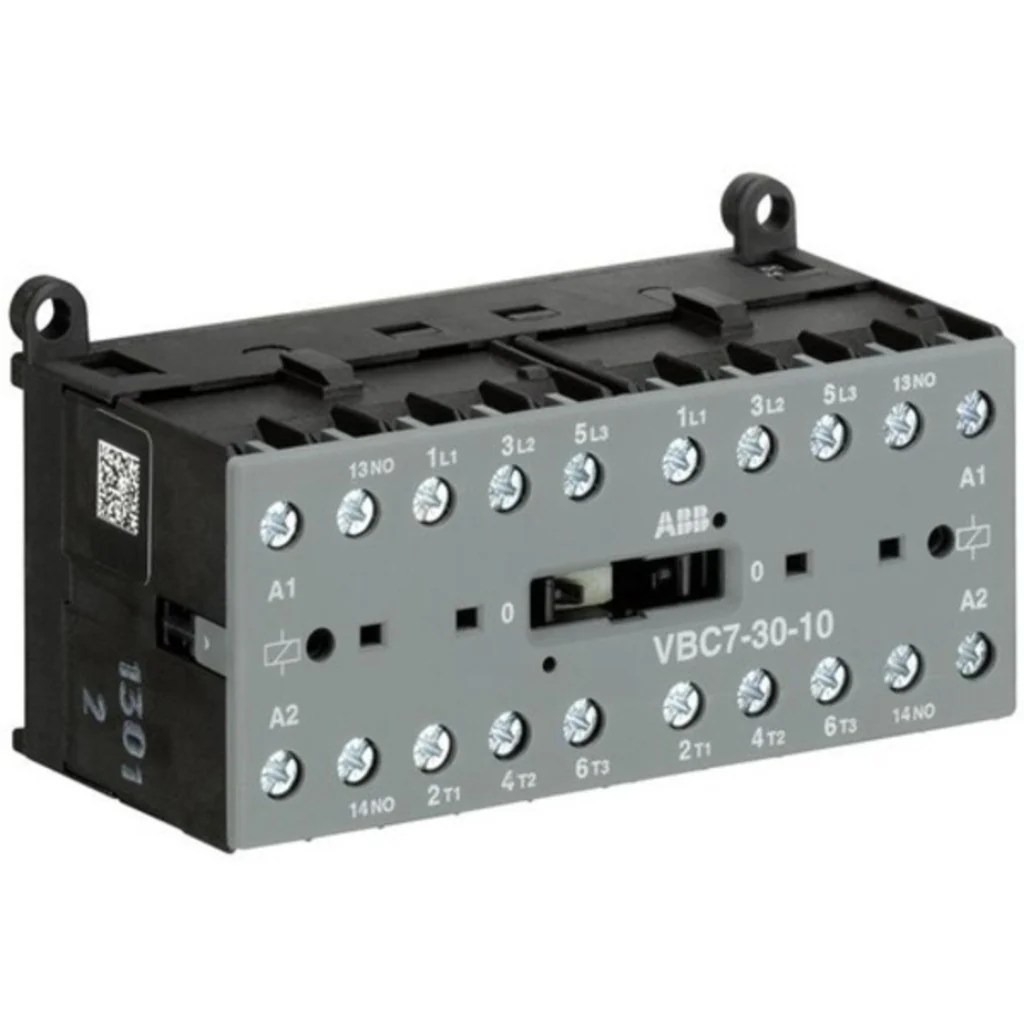

ABB DC Type Mini Reversing Contactor Three Pole VBC7-30-10

Product Description

• The VBC7-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock

• They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3)

• Further features are the noiseless and hum-free coil, a a switch position indication and the integrated possibility for rail or wall mounting

• Number of Poles : 4

• Rated Operational Voltage : Main Circuit 690 V AC

• Rated Impulse Withstand Voltage (U_imp) : Main Circuit 6 kV

• Rated Insulation Voltage (U_i) : 690 V , acc. to UL/CSA 600 V

• Number of Main Contacts NC : 0

• Number of Main Contacts NO : 3

• Number of Auxiliary Contacts NC : 0

• Number of Auxiliary Contacts NO : 1

• Conventional Free-air Thermal Current (I_th) : Main Circuit 20 A

• Pollution Degree : 3

• Mechanical Durability : 10000000 cycle

• Product Net Width : 96.5 mm

• Product Net Height : 57.5 mm

• Product Net Depth / Length : 46.5 mm

• Product Net Weight : 0.355 kg

Product Specification

Product Id	Type
GJL1313901R0101	VBC7-30-10-01 Mini Rev.Contactor
GJL1313901R0104	VBC7-30-10-04 Mini Rev.Contactor
GJL1313901R0105	VBC7-30-10-05 Mini Rev.Contactor
