ABB Compact Range Flush Push Button Pilot Light CP1-10-20

Product Description

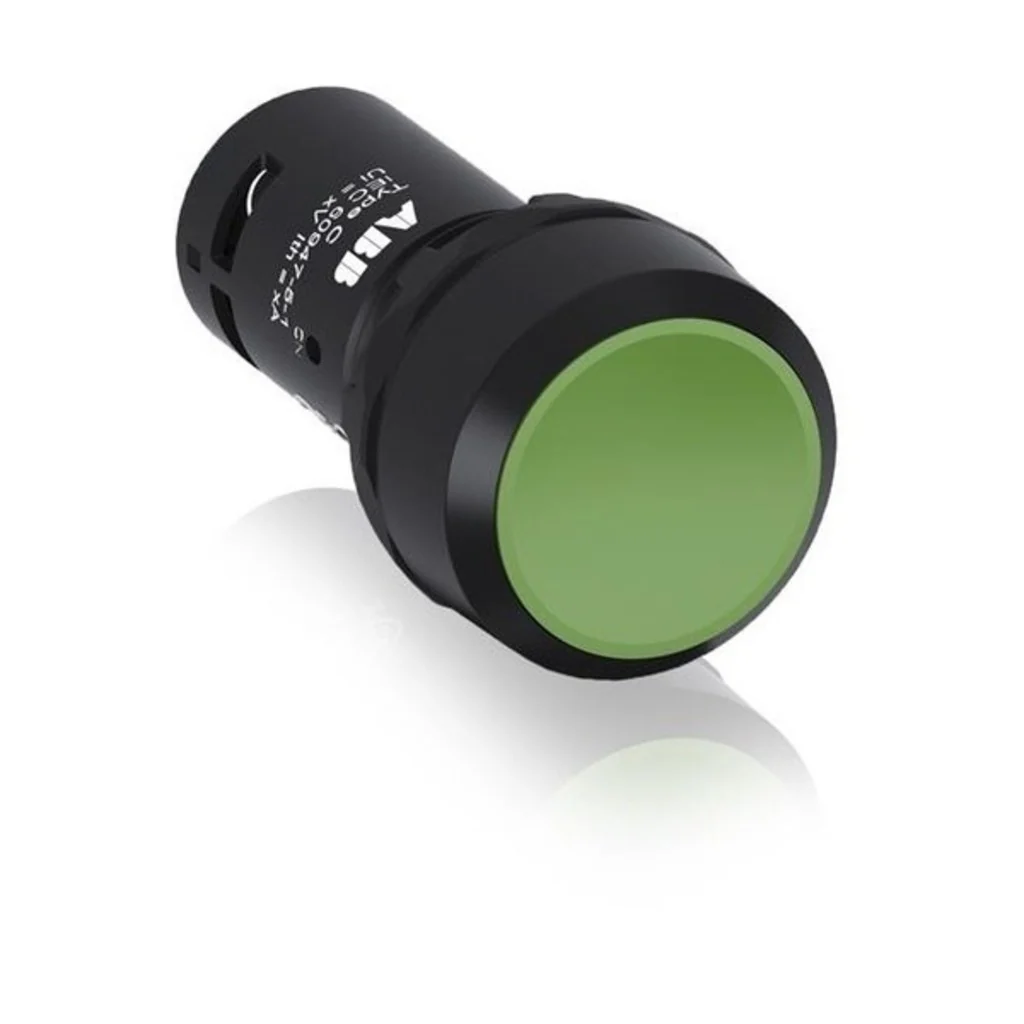

• Compact Pushbutton Momentary Flush Green Non-illuminated Pilot Light With Black plastic

• ABB Pilot Devices offers both a Modular and Compact Range of Pushbuttons. Both feature the same front-of-panel design and appear consistent when combined

• Compact Range features an all-in-one construction and rugged design for added simplicity and ease of installation

• Product Name : Pushbutton

• Product Range : Compact

• Product Type : CP

• Actuator Type : Flush

• Bezel Material : Black plastic

• Degree of Protection : Front IP69K , Terminals IP20

• Function : Momentary

• Illumination : Non-illuminated

• Mechanical Durability : 0.5 million

• Number of Auxiliary Contacts NC : 1

• Number of Auxiliary Contacts NO : 1

• Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

• Rated Operational Current AC-15 (I_e) : (24 / 127 V) 1.5 A , (220 / 240 V) 1 A

• Rated Operational Current DC-13 (I_e) : (24 V) 0.3 A , (125 V) 0.2 A

• Product Net Width : 0.030 m

• Product Net Height : 0.030 m

• Product Net Depth / Length : 0.055 m

• Product Net Weight : 0.022 kg

Product Specification

Product Id	Description	Colour
1SFA619100R1021	PUSHBUTTON#CP1-10R-20	Red
1SFA619100R1022	PUSHBUTTON#CP1-10G-20	Green
