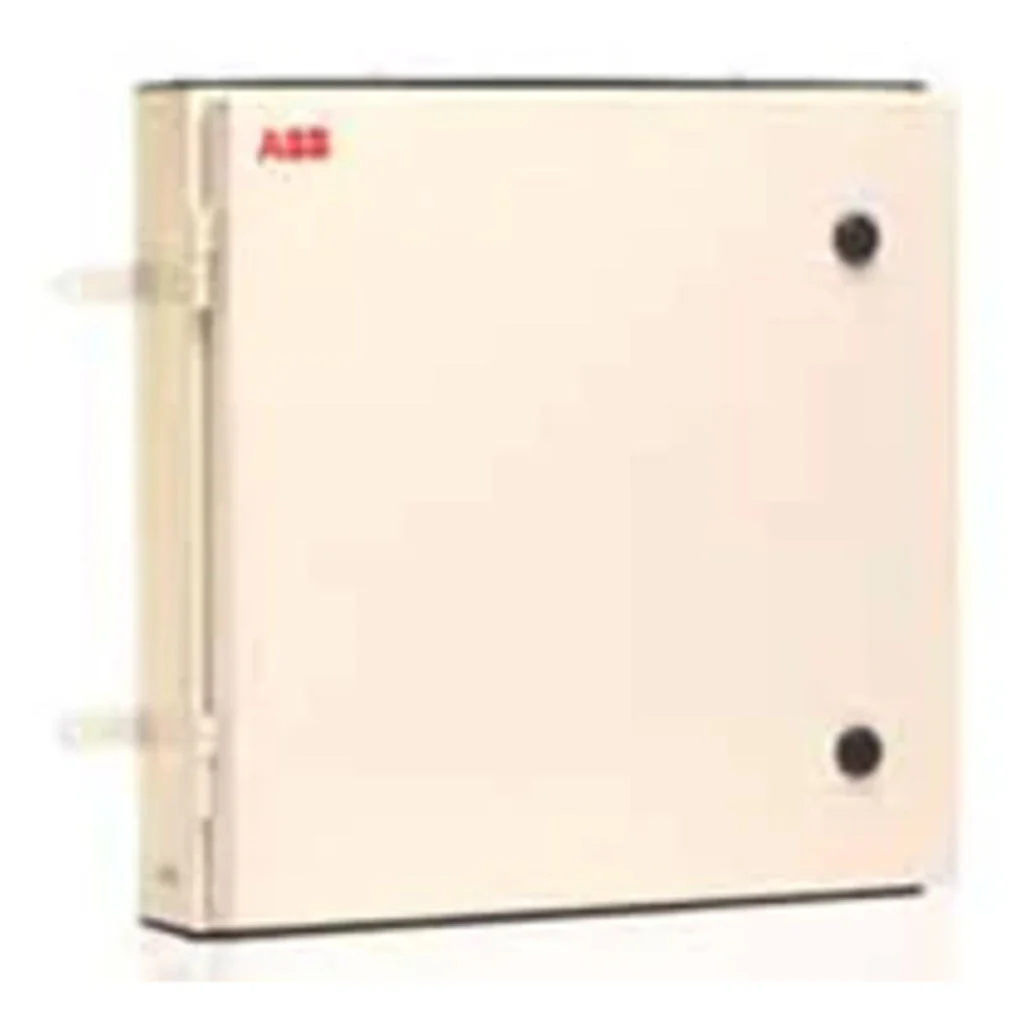

ABB Classic Series IP54 Metal Door Distribution Board Three Phase SHDB
Product Description
- Horizontal three phase distribution board with provision for incomer 8 pole (MCB / Isolator / RCD) and single phase outgoings
- These distribution boards come with earth link, neutral link, tinned electrolytic copper busbar and wire sets for cable management
- Top and bottom, removable gland plates with knockouts. Mounting of these boards can be flush or surface
- Series : Classic Series
- Protection Type : IP54 Metal Door
Product Specification
|
Type |
No of Ways |
No of Modules |
Product ID |
|
|
Incoming |
Outgoing |
|||
|
SHDB M WP 4 |
4 way |
8 |
12 |
1SYN869001R0004 |
|
SHDB M WP 6 |
6 way |
8 |
18 |
1SYN869001R0006 |
|
SHDB M WP 8 |
8 way |
8 |
24 |
1SYN869001R0008 |
|
SHDB M WP 12 |
12 way |
8 |
36 |
1SYN869004R0027 |
|
SHDB M WP 16 |
16 way |
8 |
48 |
1SYN869004R0028 |
