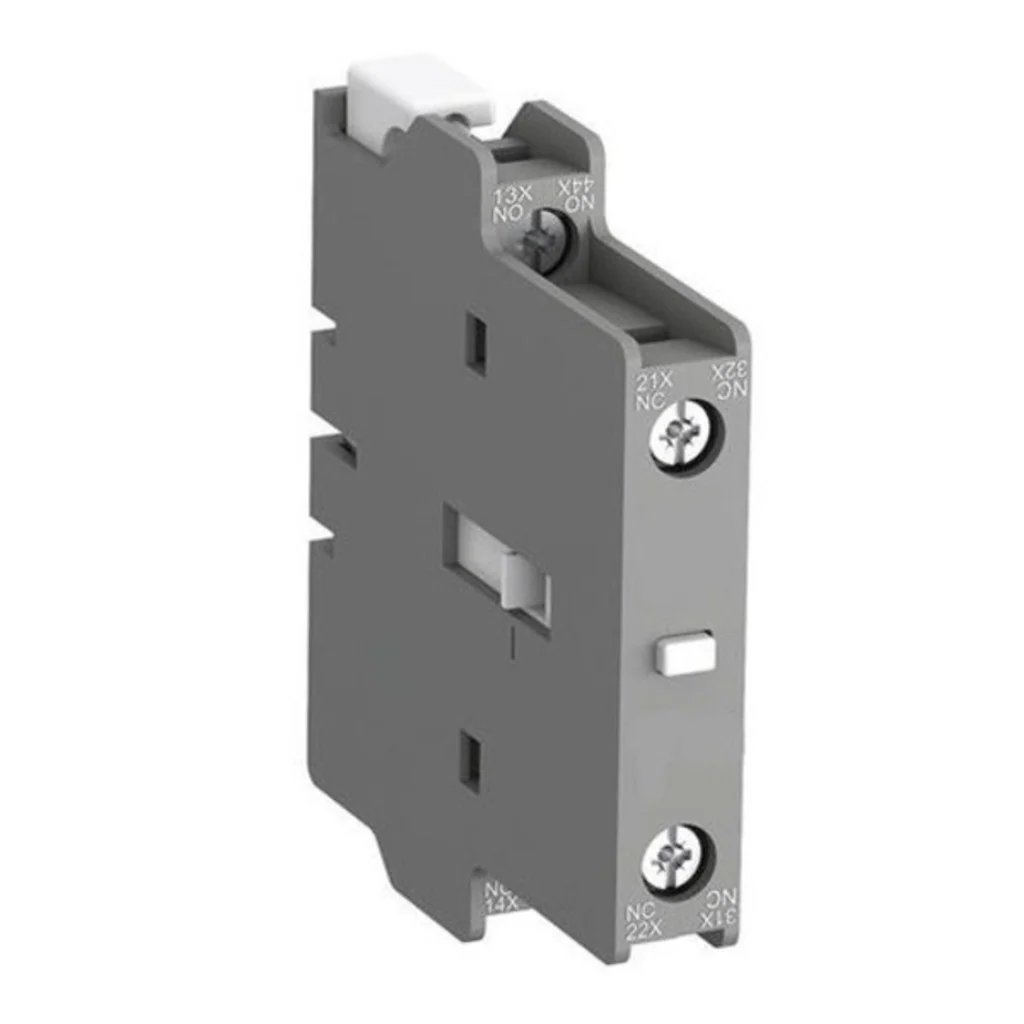

ABB Auxiliary Contact Block CAL

Product Description

• Degree of Protection : acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20

• Maximum Electrical Switching Frequency : 1200 cycles per hour

• Maximum Mechanical Switching Frequency : 3600 cycles per hour

• Mounting on Contactors : A 9...A 110

• Mounting Position : Side

• Product Name : Auxiliary Contact Block

• Rated Breaking Capacity acc. to IEC 60947-5-1 : 10 x Ie AC-15

• Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

Product Specification

Contact Configuration		Product Id	Type
NO	NC
1NO	1NC	1SBN010020R1011	CAL5-11
1NO	1NC	1SFN010720R1011	CAL18-11
1NO	1NC	1SFN010720R3311	CAL18-11B
1NO	1NC	1SFN010820R1011	CAL19-11
1NO	1NC	1SFN010820R3311	CAL 19-11B
